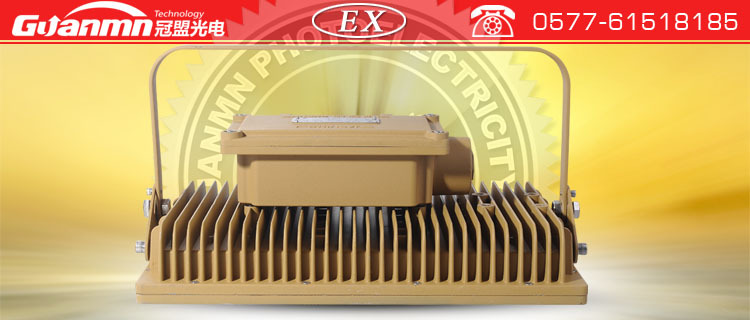

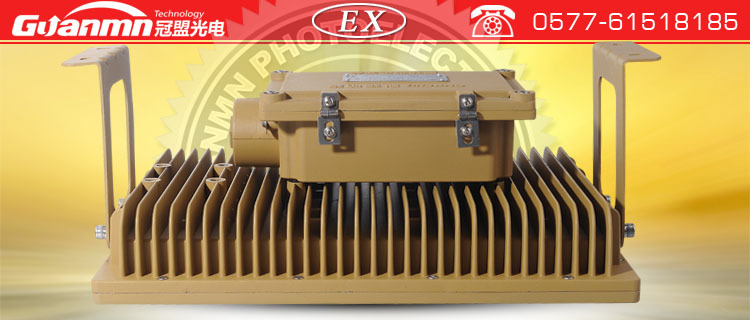

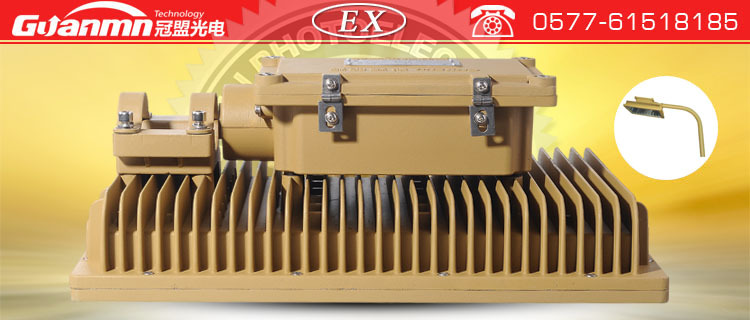

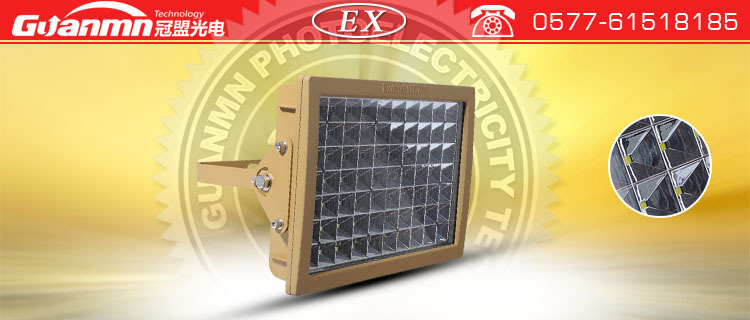

IP66 surface mounted 70W led explosion proof light fixtures

 Application

1. Ideal to be used in the oilfield, chemical industry, offshore drilling platform, steel industry, petroleum, etc.

2. Gas explosive environment: Group IIA, IIB, IIC.

3. Zone 1, zone 2; zone 21, zone 22.

Characteristics

1. LED explosion-proof lights are made using special aluminum housing, all exposed fasteners and bracket adopt 304 stainless steel. Using high-tech anti-corrosion surface treatment technology, explosion proof LED light is suitable for long-term highly corrosive environment of offshore oil platforms, oil drilling platform, chlor-alkali, vulcanization cyanide, etc.

2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.

3. Variety of light distribution, variety of installation types, an effective solution to beautify workshop and device platform.

4. The shell is made of high-tech surface coating technology, corrosion resistant, waterproof and dust proof, suitable for harsh environments.

5. Optoelectronic integrated technology，no dark spot, no ghosting, the average light efficiency of whole lamp can reach to 120 lm/W, energy saving is 60% more than Metal Halide Lamp.

6. Taiwan Meanwell power supply or same quality power supply, power factor above 0.98, high reliability and long time service life.

7. Independent wiring chamber, safe and easy installation and maintenance.

8. Quick replace light source without welding.

Technical Specification

Model Number:GMD97B

Input Voltage: 90~264VAC

Frequency:50Hz / 60Hz

Screw Thread: G3/4”, NPT3/4", M20, M25, NPT1/2"

CRI:Ra 70(80 Optional)

Dimension:310×165×260mm

Net Weight:9.5kg

Wattage:70W
