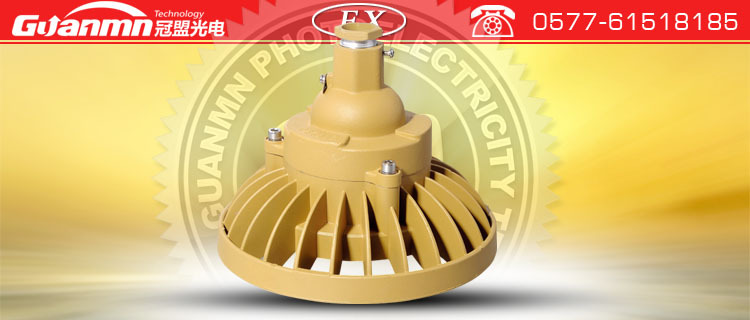

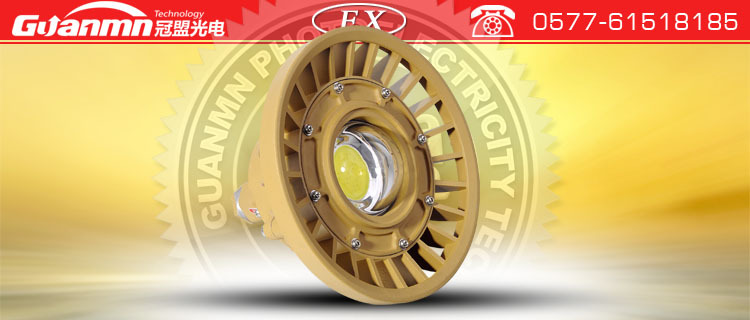

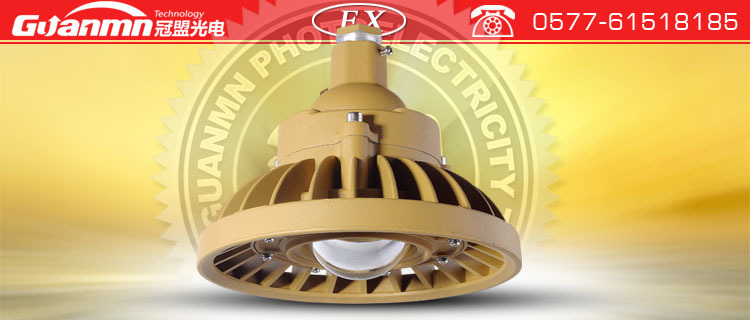

High Power LED Explosion proof Floodlight

Application

1. Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.

2. Harsh environment, moist area.

3. Gas explosive environment : Group IIA, IIB, IIC

4. Zone 1, Zone2; Zone 21, Zone 22

5. Temperature class: T1 to T6

Characteristics

1. Adopts  LED light source, can save 60% on energy than metal halide lamp.

2. The blade-shape housing and heat sink on back cover ensure the lamp to efficiently dissipate heat so that prolong LED life.

3. Taiwan Meanwell LED driver, power factor >0.98, more stable performance.

4. Adjustable position-locking device on the bracket can tightly fix the lamp to any desired angle, keep the lamp from moving in harsh vibration area.

5. The anti corrosion aluminum alloy body is powder coated, anti corrosion, dust proof, water proof. Suitable to be used in harsh environment.

6. Flame proof type of protection, safe for use in all kinds of inflammable and explosive area.

7. The lamp can parallel connected , no need to use the junction box.

8. Beam angle: 80°(standard), 60°, 120°and streetlight beam angle is optional.

Technical Specification

Model Number:GMD 110

Input Voltage: 90-305VAC / 127-431VDC

Frequency:50Hz / 60Hz

Anti corrosion grade:WF2

Insulation Grade:I

Screw Thread: G3/4”, NPT3/4", M20, M25, NPT1/2"

Cable Diameter:Φ9mm-Φ14mm

Dimension:200×200×160mm

Net Weight:2kg
