Welcome~GUANMN Explosion-proof lighting fixtures

Explosion Proof LED Lights

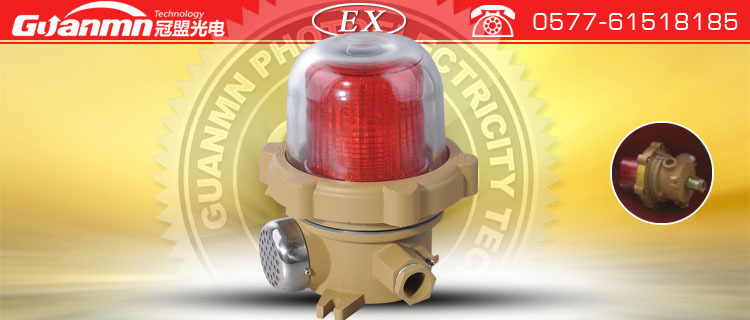

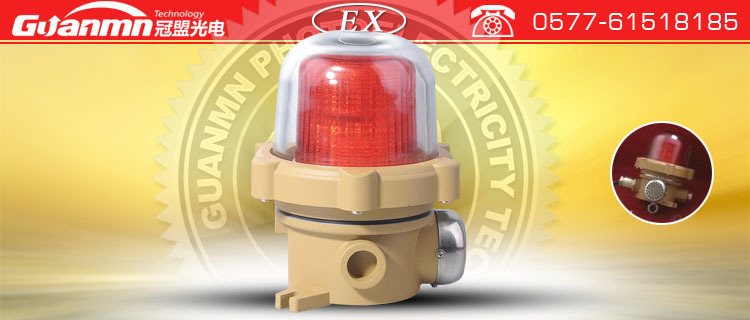

DC24V Explosion proof Alarm lightin

  • Introduction:1. Can be used in hazardous areas: Zone 1 and Zone 2 .

    2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T4.

    3. Hazardous zone : 20. 21. and 22

    4. Flammable dust atmosphere.

    5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.



1. Can be used in hazardous areas: Zone 1 and Zone 2 .



2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T4.



3. Hazardous zone : 20. 21. and 22



4. Flammable dust atmosphere.



5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.





Specifications



Used in Zone1&Zone2

Ex-mark: ExdeIICT6

Rated Voltage: AC 36/110/220V,DC 12/24/36V

Static/Flashing type



Technical Specification



1. Compliance with: GB 3836.1, GB 3836.2, GB 3836.3, IEC60079-0, IEC60079-1, IEC60079-7

2. Explosion protection: ExdeIICT6

3. Rated voltage: AC 36/110/220V,DC 12/24/36V

4. Strobe frequency:150times/min

5. Cable entry specification: G1/2,G3/4( pendant type 3)

6. Cable’s outer diameter: Φ6mm~Φ10mm,Φ9mm~Φ14mm( pendant type 3)
