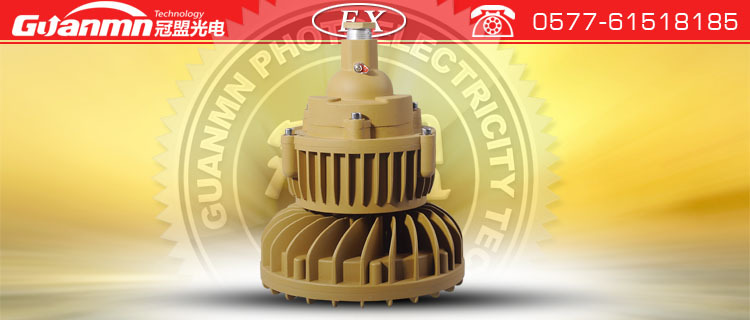

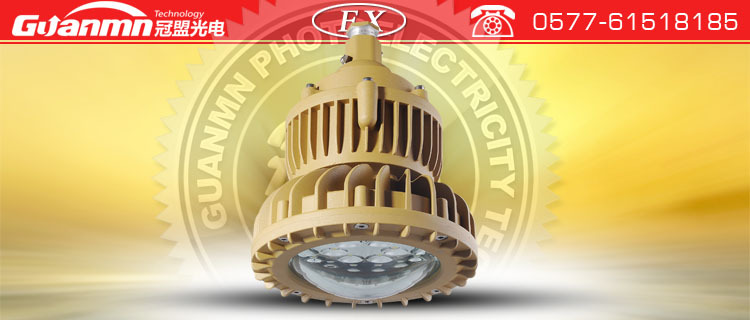

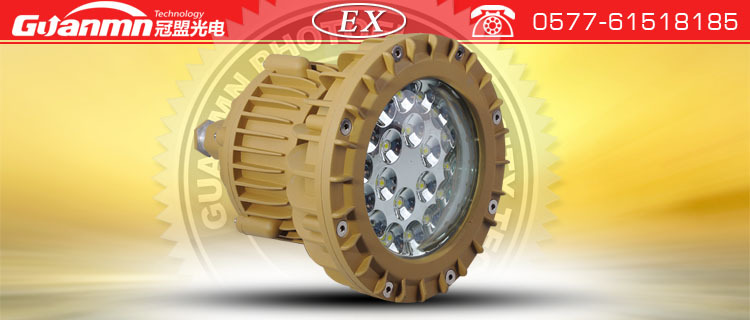

Coal industry uses high brightness explosion-proof strong light lamps

[scope of application]


It is widely used in dangerous environments such as oil exploitation, oil refining, chemical industry, military industry, offshore oil platforms, oil tankers and other places for general lighting and operation lighting;

It is suitable for energy-saving transformation projects and places with difficult maintenance and replacement;

It is suitable for places with high protection requirements and humidity;

Suitable for zone 1 and zone 2 of explosive gas environment;

It is suitable for Ⅱ a, Ⅱ B and Ⅱ C explosive gas environment;

Suitable for T1-T6 temperature group;

[technical parameters]

Specification and model: GMD 210

Explosion proof sign: Exd II CT6

Working voltage: AC / DC 220V ± 20% 50Hz

Rated power: 40W

Power factor: 0.98

LED luminous flux: 4500lm

Protection grade: IP66

Anti corrosion grade: WF2

Lead in device: G3 / 4 "lead in specification, suitable for Φ 10 mm ～ Φ 14 mm cable

Terminal block: reliable connection of conductor ≤ 2.5mm2

Installation mode: ceiling type (x), wall type (B1), wall type (B2), suspender type (g), guardrail type (H), flange type (f)

Operating height: 2-3.5m

Installation distance: 2-3m

Average illumination: 90lx (3m high)

Product weight: 4kg

External dimension: 220 × 220 × 270
